Adjusted Cox proportional-hazards model for a signature

cox_model() fits a single multivariate Cox model of the survival outcome on the signature genes together with any design terms recorded in the signature at build time (sig$design_terms) and any extra confounders supplied here. It is the companion to the gene-only scoring model in build_signature: the signature's risk score deliberately ignores the design covariates so it stays portable, while this stage supplies inference adjusted for them on a cohort that records them.

cox_model(sig, se, confounders = character(0))

Arguments

sig: An object of class "rnaSentry_signature" as returned by build_signature.
se: A SummarizedExperiment containing the signature genes in its rows and the survival metadata columns recorded in sig (sig$time_col and sig$event_col). Expression is taken from the same analysis assay used at signature-build time (see build_signature).
confounders: Character vector of additional colData(se) columns to adjust for, beyond sig$design_terms. Defaults to character(0).

Value

An object of class "rnaSentry_cox_model" (a list) with elements:

genes: The signature genes in the model.
terms: All fitted terms: the genes, then sig$design_terms, then confounders.
formula: The model formula.
fit: The coxph fit object.
coef_table: Data.frame with one row per fitted term: term, coefficient, se, HR, HR_low, HR_high and p.
gene_summary: Data.frame of the signature-gene rows of coef_table with an added BH-adjusted adj_p.
zph_summary: Data.frame from cox.zph with one row per term plus GLOBAL; NULL when the test could not be run.
concordance: Harrell's concordance index of the fitted model.
ph_violated: Logical; TRUE when any term (including GLOBAL) violates proportional hazards at alpha 0.05.
n, events: Number of samples and events used by the fit.
sig_locked: Whether the input signature was locked.
created: Provenance timestamp.
flags: Data.frame of issues raised (missing covariate values, non-estimable genes, proportional-hazards violations), with columns check, severity, detail and stage.

Details

For every fitted term the model reports the hazard ratio with a Wald confidence interval and p-value. For the signature genes it also reports a Benjamini-Hochberg adjusted p-value across the genes, so that gene-level multiplicity is controlled. Proportional-hazards diagnostics (cox.zph) are run on every term and the GLOBAL test; a violation flags the model.

The stage is read-only: it works on both locked and unlocked signatures and records the signature's lock state in its output.

Assumptions and limitations

The model assumes proportional hazards (tested and flagged via cox.zph) and standard right-censored survival. It does not model competing risks, time-varying covariates, or left truncation. Like the rest of the pipeline it makes no batch-effect correction; adjustment for recorded design covariates is supplied through sig$design_terms and confounders.

Examples

library(SummarizedExperiment)
set.seed(7)
counts <- matrix(rpois(450, lambda = 500), nrow = 30, ncol = 15,
                 dimnames = list(paste0("gene", 1:30), paste0("S", 1:15)))
sig_expr <- colMeans(counts[1:4, , drop = FALSE])
risk <- scale(sig_expr)[, 1] * 0.4
event_time <- rexp(15, rate = 0.03 * exp(0.8 * risk))
censor_time <- rexp(15, rate = 0.02)
time <- pmin(event_time, censor_time)
event <- as.integer(event_time < censor_time)
coldata <- S4Vectors::DataFrame(time = time, event = event,
                                 batch = factor(rep(c("B1", "B2"),
                                                    length.out = 15)),
                                 row.names = colnames(counts))
se <- SummarizedExperiment(assays = list(counts = counts), colData = coldata)
sig <- build_signature(se, "time", "event", top_n = 4, repeats = 1,
                       folds = 2, seed = 1, design_terms = "batch")
#> Warning: Only 10 event(s) for a 4-gene signature (2.5 events per parameter), below 'min_events_per_parameter' = 5. Cross-validated concordance and hazard ratios are unstable at this event count; consider fewer genes or a larger cohort.
cm <- cox_model(sig, se)
cm
#> rnaSentry Cox model: 4 gene(s) + 1 covariate term(s), 10 events.
#> Concordance: 0.852. Proportional hazards: violated (see flags).
#> Signature genes (HR [95% CI], BH adj. p):
#>   gene14         35.43 [0.00, 27783335525367.37]  p = 0.798488  adj.p = 0.79849
#>   gene7          0.00 [0.00, 6.34]  p = 0.070145  adj.p = 0.28058
#>   gene3          20828683.23 [0.00, 439369724642329664.00]  p = 0.164714  adj.p = 0.32943
#>   gene22         1768.75 [0.00, 20237523690717.25]  p = 0.526845  adj.p = 0.70246
#> Signature not locked.
#> 1 issue(s) flagged:
#>   [warning] proportional_hazards: Proportional-hazards assumption may be violated (term(s): batch).

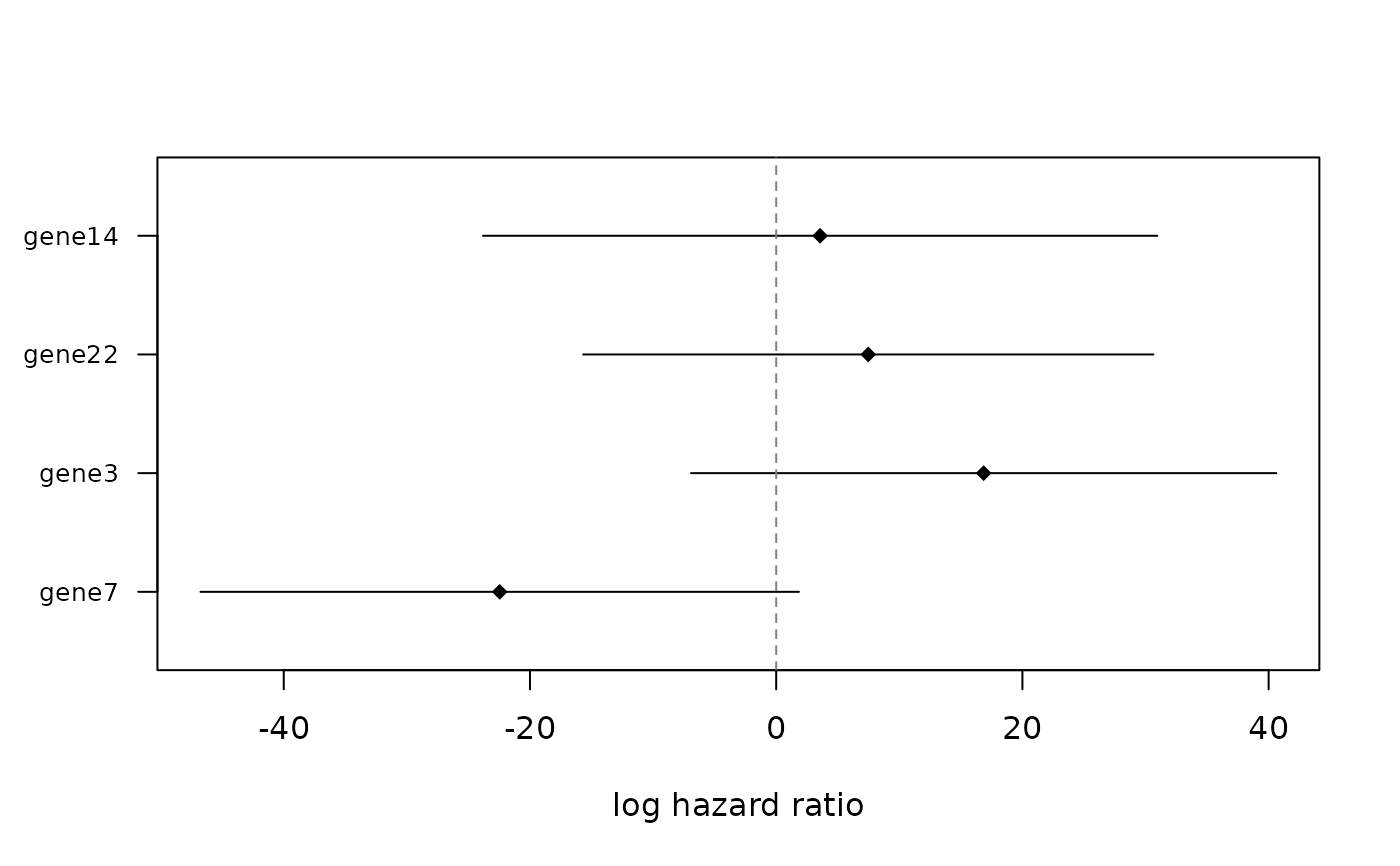

plot(cm)
